Features

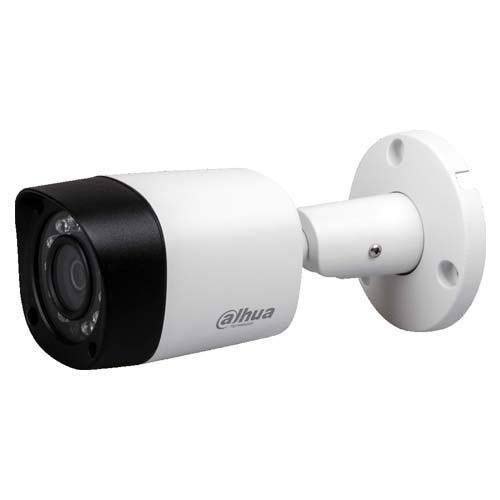

Experience 5MP video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 5MP HDCVI camera features a compact design and offers a high-quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high-cost performance makes the camera an ideal choice for SMB solutions.

• Max. 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Max. IR length 20 m, Smart IR · IP67, DC12V

Specifications

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Pixel : 5MP
• Illumination Distance : 20 m (66 feet)
• Illuminator On/Off Control : Auto;manual
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Day/Night : Auto (ICR) / Manual
• Noise Reduction : 2D
• White Balance : Auto;manual
• Lens Type : Fixed lens / Fixed iris
• Mount Type : M12
• Focal Length : 3.6 mm (2.8 mm Optional)

Power Features

• Power Supply : 12V DC ±30%
• Power Consumption : Max. 3.7W (12V DC, IR on)

Dimensions & Weight

• Dimensions : 69.8 mm × 69.8 mm × 149.3 mm (2.75" × 2.75" × 5.88")
• Net Weight : 0.15 kg (0.33 lb)
• Gross Weight : 0.25 kg (0.55 lb)
