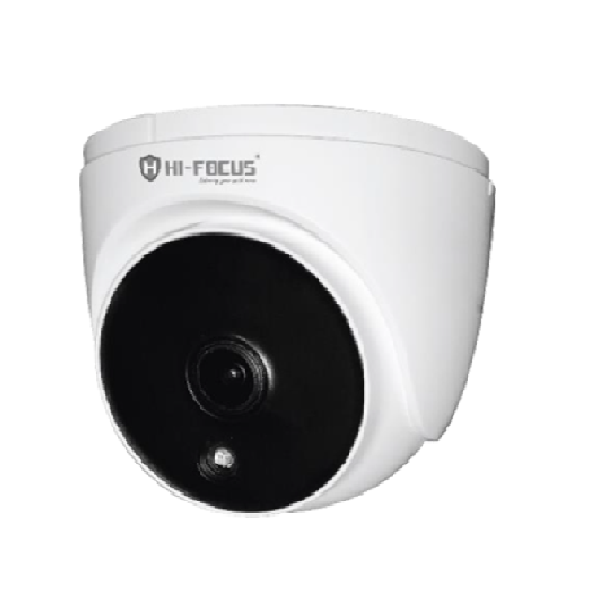

2.4MP Analog Dome HD Camera
- 2.4MP Image Resolution, True Color
- AHD/TVI/CVI Standard and Lossless Video Output
- CMOS Progressive Scan, Perfectly Capture the Moving Object
- Support OSD Menu
- High Speed, Long Distance and Real time Transmission
- Auto Color to B/W at Low illumination
- Support ICR Switch, True Day/night
- 20m IR night View Distance
- Support COC
- Image Sensor: 1/3.2" CMOS
- Lens: 2.8mm (horizontal field of view: 107°), 3.6mm (horizontal field of view: 86.6°)
- Angle of View (H): 107°
- Day/Night: ICR
- Shutter Speed: Auto: 1/50s ~ 1/100000s (PAL)
- Minimum Illumination: 0 lux (IR ON)
- IR Range: 20m
- WDR: DWDR
- Digital Zoom: 16x
- Video Output: AHD/TVI/CVI/CVBS
Brand | HI-FOCUS |
CCTV Type | Indoor |
CCTV Model | Dome camera |
CCTV Resolution | 2.4 MP |
Power | DC 12V (± 10%) |
Power Consumption | IR Off : 1W: IR On : 3W |
Working Humidity | 10% ~ 90% humidity |
Working Environment | -30°C~50°C |
Dimensions | Ф 77.5 x 67.6 (mm) |
Weight | Approx. 0.17KG |
Warranty | 1 Year |
