Highlights

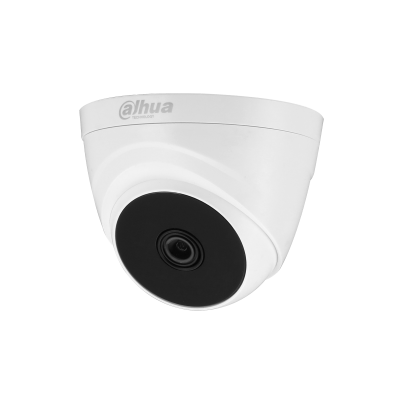

5MP HDCVI Fixed IR Eyeball Camera, The parameters and datasheets below can only be applied to A51-S2 series. In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max. 25 fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm optional)
- Max. IR length 20 m, Smart IR
- DC12V
- Image Sensor : 1/2.7" CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Pixel : 5MP
- Lens Type : Fixed lens / Fixed iris
- Mount Type : M12
- Focal Length : 3.6mm (2.8mm Optional)
- Close Focus Distance : 2.8 mm: 0.8 m (2.6 ft), 3.6 mm: 1.2 m (3.9 ft)
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080);960H (960 × 576/960 × 480)
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Day/Night : Auto (ICR) / Manual
- Noise Reduction : 2D
- Power Supply : 12V DC ±30%
- Power Consumption : Max. 2.7W (12V DC, IR on)
Brand | Dahua |
CCTV Model | Dome camera |
CCTV Type | Indoor |
CCTV Resolution | 5 MP |
Dimensions | φ85.4 mm × 68.8 mm |
Weight | 0.14 kg |
Warranty | 1 Year |
