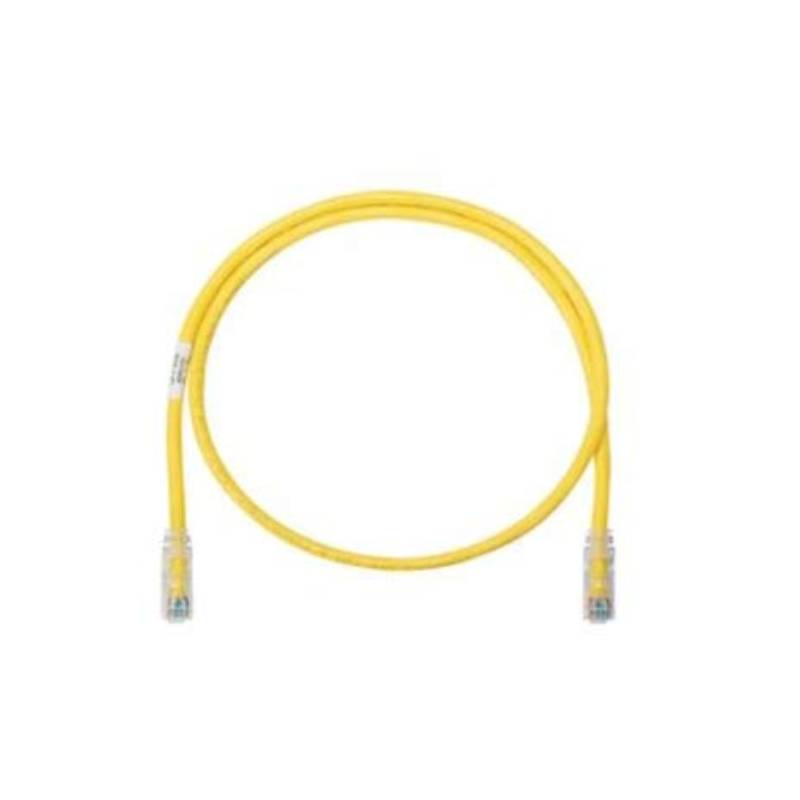

NPC RJ45 Patch Cord, category 6, U/UTP, LSZH
- High-performance patch cords exceeding industry standards supporting NETCONNECT channel specifications
- Standardized transparent, slim-line boots provide consistent patch cord appearance and support the highest density applications
- Colored clips are available to fit the transparent boot, eliminating the need for multiple colors for matching every jacket color
- Colored pull latch tabs are available for easier plug release handling from the modular jack
Brand | CommScope |
Product Type | Twisted pair patch cord |
Product Series | NPC |
Product Number | CC6ZH |
ANSI/TIA Category | 6 |
Cable Type | U/UTP (unshielded) |
Conductor Type | Stranded |
Interface, Connector A & B | RJ45 plug |
Interface Feature, Connector A & B | Standard |
Jacket Color | Black | Blue | Green | Orange | Red | Slate | White | Yellow | Gray |
Separator Type | Bisector |
Transmission Standards | ANSI/TIA-568.2-D | IEEE 802.3bt Type 4 | ISO/IEC 11801 Class E |
Wiring | T568B |
Dimensions | Cable Assembly Length Range (m) 1 – 30 | Diameter Over Jacket 5.97 mm |
